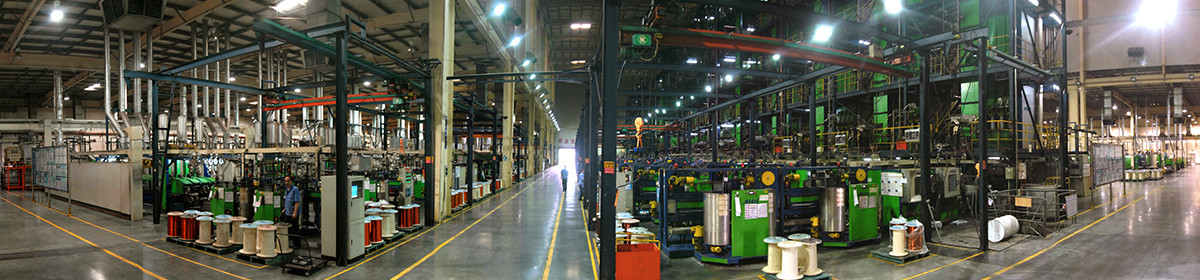

公司先后從德國、奧地利、意大利等國引進先進的拉絲、漆包生產設備,是國內第一條最高端、最先進的特種漆包線生產線。 MAG漆包生產線是目前國際上最先進的漆包生產線之一,具有優良的穩定性和可靠性。全部采用在線拉絲、模具涂漆、全電腦控制工藝參數、在線檢測、計算機模擬排線等。該生產線自動化程度高,能實現自動斷線停車、自動供漆、自動分線、自動換線等功能。涂漆方式為三涂層結構,可以按用戶的各種特殊需求開發相應的漆包線產品。

At present, MAG wire enamel product line is one of the most developed wire enamel product lines in the world. It possesses superior stability and reliability. It wholly adopts in-line wire drawing, mould paint coating, totally computer-controlled processing parameter, on-line measurement, and winding displacement by computer modeling etc. This product line is of high automation,and can automatically power off when the wire is broken, automatic enameling, automatic line parting, automatic line changing etc. The paint coating is in the way of three-coating-layer structure, and corresponding enamel wire products can be developed according to user's different kinds of particular deman。
| 設備型號:HF4 | Equipment type: HF4 |
| 生產規格:0.2-0.5 mm | Production specification: 0.2-0.5 mm |
| 模具涂漆,三涂層 | Mold coating, three-layer coating |
| 設備型號:HF5 | Equipment type: HF5 |
| 生產規格:0.5-0.8 mm | Production specification: 0.5-0.8 mm |
| 模具涂漆,三涂層 | Mold coating, three-layer coating |
| 設備型號:HF6 | Equipment type: HF6 |
| 生產規格:0.5-1.2 mm | Production specification: 0.5-1.2 mm |
| 模具涂漆,三涂層 | Mold coating, three-layer coating |
| 設備型號:VF6 | Equipment type: VF6 |
| 生產規格:0.5-2.0 mm | Production specification: 0.5-2.0 mm |
| 模具涂漆,三涂層 | Mold coating, three-layer coating |
| 設備型號:VF7 | Equipment type: VF7 |
| 生產規格:1.0-4.0 mm | Production specification: 1.0-4.0 mm |
| 模具涂漆,三涂層 | Mold coating, three-layer coating |
| 設備型號:VL8 | Equipment type: VL8 |
| 生產規格:5-80 mm2 | Production specification: 5-80 mm2 |
| 模具涂漆,三涂層 | Mold coating, three-layer coating |
| 在線連拉機 | continuous wire-drawing machine |
| 清洗過濾裝置 | Cleaning and filtration device |
| 自動分線、自動換線、計算機模擬 | Automatic wire cutting, automatic wire changing |
| 排線 | and wire arranging through computer simulation |
| 電腦控制生產過程 | Computer controlled production process |
| 高壓針孔檢測裝置 | High pressure pinholes testing device |
| M85德國進口大拉機 | M85 heavy wire drawing machine imported from Germany |
| 最大進線:8mm | Max.inlet wire diameter: 8mm |
| 生產規格范圍:1.15—4.5mm | Production specification: 1.15-4.5mm |
| 拉絲模數:13道 | Number of wire drawing die: 13 dies |
| 電阻式連續退火,大容量成圈收線 最大收線容量達2.5噸 |
Electric resistance continuous annealing. Spool wire in big capacity. Max capacity of spool reaches 2.5 tons |
| EH-50/4 德國進口軋拉機 | EH-50/4 heavy wire rolling and drawing machine imported from Germany |
| 最大進線:200mm2 | Max.inlet wire diameter:200mm2 |
| 生產規格范圍:5—140mm2 | Production specification: 5-140mm2 |
| 拉絲模數:4道 | Number of wire drawing die: 4 dies |
| 無滑動連續式拉絲機,可生產圓銅 線、扁銅線、電車線等 |
Nonslip wire drawing machine,Can produce round 、rectangular、trolley wire |
